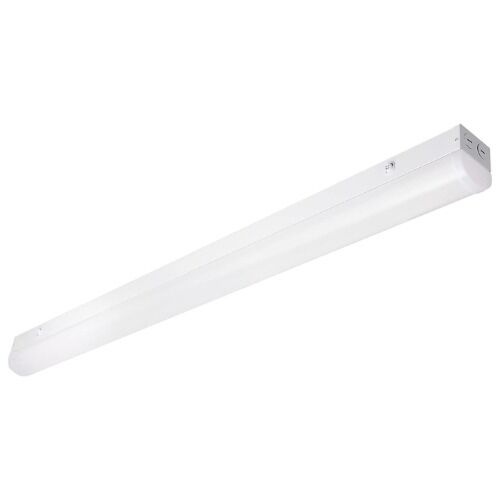

Satco 65-1701 4' LED Linear Strip Light with Motion Sensor Wattage and CCT Selectable

Satco 4ft LED Linear Light with Motion Sensor & Direct-Wire Bypass

The Satco 65-1701 is a 4ft LED linear strip light with a factory-integrated bi-level microwave motion sensor, built for Canadian commercial and light industrial spaces. It installs as a direct-wire bypass fixture, no ballast required, and delivers field-selectable wattage and colour temperature in a single cULus certified, DLC Listed unit.

How the Bi-Level Microwave Motion Sensor Works

The 65-1701 uses a microwave motion sensor, not PIR. Microwave sensors emit low-level pulses to detect movement reliably in warehouses, stairwells, and service corridors where body heat detection fails. When motion is detected, the fixture runs at full output up to 6,750 lumens. When the space empties, it steps down to a standby dim level before switching off completely, saving more energy than a standard on/off occupancy switch and reducing the cycling that shortens fixture life in high-traffic commercial spaces.

Direct-Wire Bypass No Ballast, No Compatibility Issues

This fixture connects directly to line voltage (120V–277V) with no ballast in the circuit. When replacing an existing 4ft LED linear strip light, remove the old ballast entirely and wire the 65-1701 straight to the electrical feed. Fewer components, no ballast-related efficiency losses, and a 50,000-hour rated lifespan with nothing external to maintain.

Selectable Wattage and Colour Temperature: One SKU, Multiple Applications

Set both wattage and colour temperature directly on the fixture before installation; no tools needed, just a switch inside the housing.

• Wattage: 30W for corridors and utility rooms, 40W for general commercial spaces, 50W for warehouses and high-rack storage where you need the full 6,750 lumens overhead.
• Colour temperature: 3500K for a neutral white in staff areas, 4000K for standard commercial interiors, 5000K for loading docks and stairwells where visibility and contrast are critical.

One fixture, one order, multiple applications. Browse the full commercial LED strip light range for additional options.

Compatible 0-10V Dimmers for Full Facility Control

The 65-1701 supports 0-10V dimming alongside the built-in sensor, giving facility managers precise control over output levels independent of occupancy. Compatible dimmers available at Lumenco:

• Legrand ADPD4FBL3P2W4 White Dimmer
• Leviton IP710-LFZ White Dimmer
• Leviton LEVDS71010Z White Dimmer

Canadian Certifications and Rebate Eligibility

cULus certified for Canadian installations. DLC Listed, qualifying this fixture for utility rebate programs including Hydro-Québec, BC Hydro, and Ontario's SaveOnEnergy, which can significantly reduce the net cost of a multi-fixture commercial retrofit. Damp location rated, FCC and RoHS compliant. Backed by a 5-year Satco warranty, supported by Lumenco as an authorised Canadian distributor.
