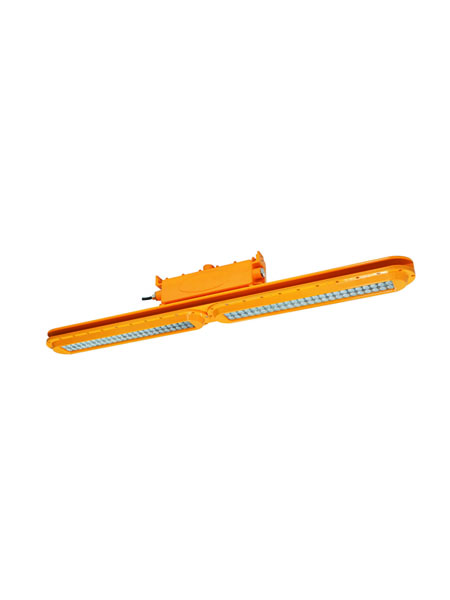

CSC LED EXPL-80W-4FT-50K 80W Orange Linear Explosion-Proof Fixture

SKU expl-80w-4ft-50k

On Sale
Special Price $1,186.40 Regular Price $1,482.99
In stock
Volume Quote
Price Match
Specification Sheet
Linear Explosion-Proof FixtureSuitable for hazardous environments where flammable gases or vapours, flammable liquids, combustible dust and/or ignitable fibers may existAlso suited for wet locations, marine environments, and high vibration applicationsDie cast aluminum - Orange finishIP66 driver in a separate compartment with 10K surge protectionC1, D2, (Groups A,B,C,D), UL844, UL1598, UL8750Atex II2G Ex db IIC T6 GbFaceted reflectors in each LED chip for glare control and beam precision3 x 3/4'' NPT conduit entry points for added flexibilityTempered glass lens allows for soft, uniform lightSuspension kit includedYoke Mount available, ordered separately; Linear Explosion-Proof Fixture; Suitable for hazardous environments where flammable gases or vapours, flammable liquids, combustible dust and/or ignitable fibers may exist; Also suited for wet locations, marine environments, and high vibration applications; Die cast aluminum - Orange finish; IP66 driver in a separate compartment with 10K surge protection; C1, D2, (Groups A,B,C,D), UL844, UL1598, UL8750; Atex II2G Ex db IIC T6 Gb; Faceted reflectors in each LED chip for glare control and beam precision; 3 x 3/4'' NPT conduit entry points for added flexibility; Tempered glass lens allows for soft, uniform light; Suspension kit included; Yoke Mount available, ordered separately
More Information
Brightness11202 Lumens
Fixture Wattage80 Watt
Structure FinishOrange
lumens per watt130 lm/W
Color Temperature5000K
TechnologyLED
Voltage120-277V
DimmableYes
UPC845599001621
Operating Temperature-40°C to 65°C
Length4'
Beam Angle110 x 100°
CRI>70
IP RatingIP66
Average life50000 hrs
Warranty5 Years Warranty
CertificationscUL Listed
