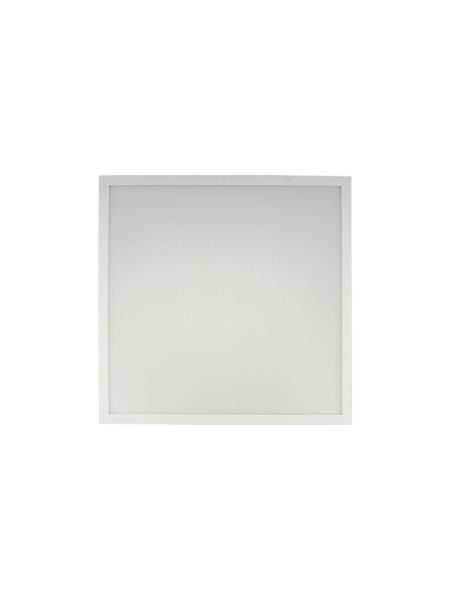

CSC LED PLP22-40W-3P-3CCT-UD 2' x 2' White PLP Panel Light Wattage and CCT Selectable
SKU plp22-40w-3p-3cct-ud
$76.99
In stock
- Buy 8 for $69.35 each and save 10%
Free Delivery on $410+ order of this product.
Volume Quote
Price Match
Wattage selectable (30W/40W/50W). Colour tunable (3000K/3500K/4000K). 120-347V driver with 0-10V dimming. Measures 2' x 2'. Seismic clips included. Waffle stamping increases heat dissipation and driver life. 0-10V dimming leads on both ends of optional Junction Box (PLS-JB). Less than 1.8'' deep ideal for tight plenum areas. Non-yellowing frosted lens
| Brightness | 2606-5039 Lumens |
|---|---|
| Fixture Wattage | 20 Watt/30 Watt/40 Watt |
| Structure Finish | White |
| lumens per watt | 125 LM/W |
| Color Temperature | 3000K/3500K/4000K |
| Dimensions | 23.75"L x 23.75"W x 1.67"H |
| Voltage | 120-347V |
| Dimmable | yes |
| UPC | 845599040750 |
| Operating Temperature | -20 °C to 40°C |
| Length | 2' x 2' |
| Beam Angle | 120° |
| CRI | 80 |
| IP Rating | IP20 |
| Average life | >50,000 hrs |
| Warranty | 7 Years Warranty |
| Certifications | cETL, DLC Listed |
