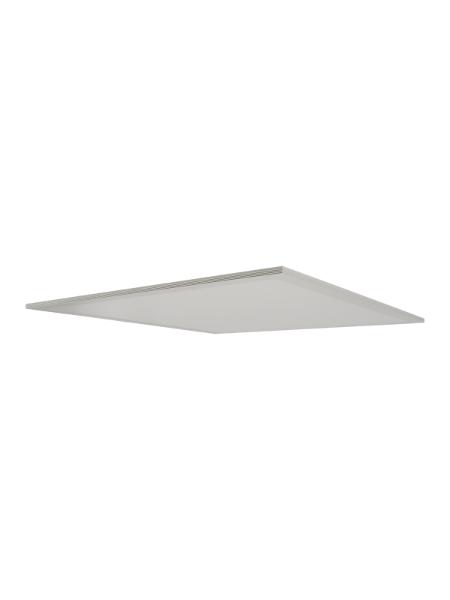

Eiko EP1-22PS30-FCCT-U Wattage Selectable 2' x 2' LED Edgelit Panel
SKU EP1-22PS30-FCCT-U
Out of stock
Volume Quote
Price Match
Thin profile is ideal for shallow plenum spaces, Uses a high quality, non-yellowing PMMA light guide plate for optimum light uniformity, Available in 1’x4’, 2’x2’ and 2’x4’ sizes, Compatible with networked lighting controls (-12 Models), PowerSet feature allows for multiple lumen stops out of the box, FieldCCeT features provides multiple color temperature settings in one fixture
| Ordering Code | 13182 |
|---|---|
| Brightness | 3750/3125/2500 Lumens |
| Safety Rated | Damp Location |
| Fixture Wattage | 30 Watt/25 Watt/20 Watt |
| Structure Finish | White |
| Color Temperature | 3500K/4000K/5000K |
| Dimensions | 23.75"L x 23.75"W x 1.8"H |
| Technology | LED |
| Voltage | 120-277V |
| Dimmable | Yes |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Length | 2' x 2' |
| Beam Angle | 120° |
| CRI | 80 |
| IP Rating | IP20 |
| Average life | 100000 hrs |
| Manufacturer Warranty | 5 Years |
| Certifications | FCC, RoHS, DLC Listed, cULus Listed, UL Certified |
