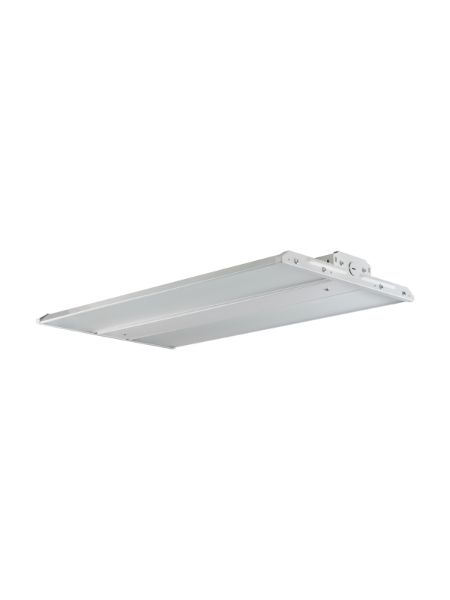

The LHB3-Series Linear High Bay provides high efficacy and energy savings to projects that require optimized lighting in high ceiling applications. Available in both regular or narrow form factors, these linear high bays are the energy efficient replacements for traditional fluorescent fixtures and HID highbays.
| Structure Finish | White |
|---|---|
| Brightness | 13518 Lumens |
| Fixture Wattage | 90 Watt |
| Average life | >50000 hrs |
| Technology | LED |
| Operating Temperature | -40°C to 50°C |
| Voltage | 120-277/347V |
| Dimmable | Dimmable |
| UPC | 849698004507 |
| CRI | 80+ |
| Certifications | DLC Listed,cETLus,RoHS |
| Safety Rated | Damp Location |
| Warranty | 10 Years Warranty |
| Color Temperature | 4000K |
