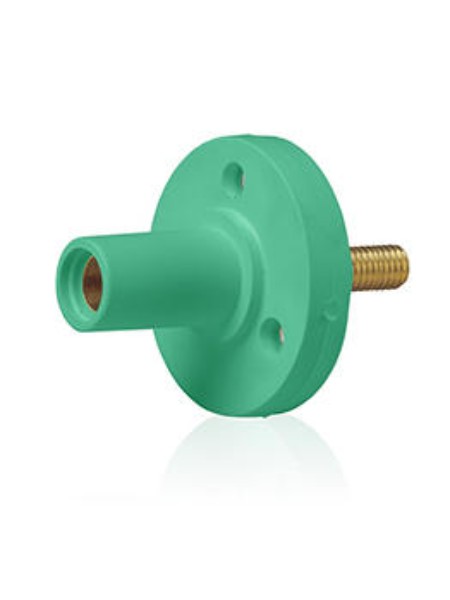

Leviton 15R22-1UG Pb Green Female Panel Receptacle Taper Nose 3/4" Threaded Stud

Industrial Female Panel Receptacle with Threaded Stud by Leviton

The 15R22-1UG from Leviton is a female panel receptacle with a taper nose and 3/4-inch threaded stud, designed for industrial power connections. It is suitable for panel-mount installations. Key features include a 600V AC/DC rating and a vulcanized thermoplastic body for 8 to 2 AWG cable.

Key Features and Benefits of This Panel Receptacle

The threaded stud gives a secure termination point for large conductors from 8 to 2 AWG (American Wire Gauge). The vulcanized thermoplastic body is built for industrial duty. UL 1691 and CSA certification give buyers a recognized standard for documentation and inspection.

Where to Use the 15R22-1UG Panel Receptacle

This receptacle is intended for industrial applications where power must be connected to panel-mounted equipment. The page does not give an environmental or wet-location rating, so confirm the installation conditions in the specification sheet.

Installation and Compatibility Checks

The receptacle measures 0.86 inches in diameter and 2.63 inches in length, with a 0.75-inch threaded stud, so check your panel cutout and clearance. Confirm your cable falls within 8 to 2 AWG, and verify that the mating plug matches the receptacle type and 600V rating.

Additional Buying Context

This receptacle has a green finish. Product-specific warranty terms are not listed, so see Lumenco's general manufacturer warranty page. Order the matching Leviton plug separately if you do not already have one.
