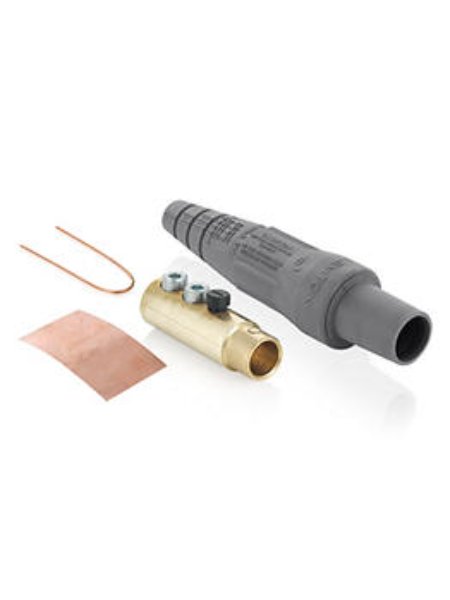

Leviton 16D33-UGY 400A 600V Gray Plug

400A Industrial Detachable Plug by Leviton

The 16D33-UGY from Leviton is a 400-amp, 600-volt AC/DC female detachable plug designed for industrial pin and sleeve connections. It is suitable for heavy-duty cable assemblies. Key features include double set screw terminals for 1/0 to 4/0 AWG cable and a NEMA 3R enclosure rating.

Key Features and Benefits of This Pin and Sleeve Plug

Double set screw terminals clamp large conductors securely, which supports reliable high-current connections. The thermoplastic body is built with a vulcanized process, and the gray housing is easy to identify. The plug is listed to UL 1691 and CSA standards, so it meets common trade requirements.

Where to Use the 16D33-UGY Pin and Sleeve Plug

This plug is well suited for industrial power connections and heavy-duty cable assemblies, where a detachable device speeds up connection and disconnection. Its NEMA 3R rating covers rain exposure, but it should not be treated as submersible.

Installation and Compatibility Checks

The plug measures 1.72 inches in diameter and 6.85 inches long. It accepts 1/0 to 4/0 AWG cable. The page does not list pole count or mating receptacle, so confirm that the matching inlet or receptacle suits your system before purchasing. Installation should follow local electrical code.

Additional Buying Context

Match the plug to the connector body and cable size of your assembly. The page does not state warranty terms, so check the manufacturer warranty page. Related Leviton receptacles and connectors in the same series can complete the connection.
