Leviton 16R32-XY Single Pole Female Receptacle Extended Shoulder

Single Pole Female Panel Receptacle by Leviton for Industrial Use

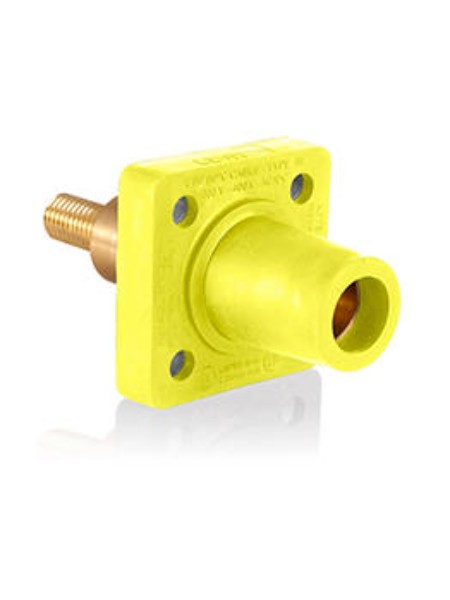

The 16R32-XY from Leviton is a single pole female pin and sleeve receptacle with an extended shoulder, designed for panel-mount power connections. The page lists outdoor and industrial use. Key features include a 600V AC/DC rating and a 1.25-inch threaded stud connection.

Key Features and Benefits of This Pin and Sleeve Receptacle

The Santoprene thermoplastic body is built for industrial environments. The threaded stud connection accepts 2 to 4/0 AWG cable, which suits heavy-gauge power runs. The yellow body is easy to spot on a panel, and the 90-degree design keeps the connection compact.

Where to Use the 16R32-XY Pin and Sleeve Receptacle

This receptacle is listed for outdoor and industrial applications, such as portable power equipment and distribution panels that need a heavy-duty single pole connection. It is not a household device, so confirm it matches your equipment and mating plug before ordering.

Installation and Compatibility Checks

This is a panel-mount device measuring 4.57 inches long by 2.28 inches wide. The page does not state the amperage rating, so confirm it on the manufacturer documentation before purchase. Verify that your cable falls within the 2 to 4/0 AWG range and that the mating plug is compatible.

Additional Buying Context

The receptacle is certified to UL 1691 and CSA. The page does not state product-specific warranty terms, only a link to a general manufacturer warranty page. Pair it with the matching Leviton plug or connector from the same series, and confirm compatibility.
