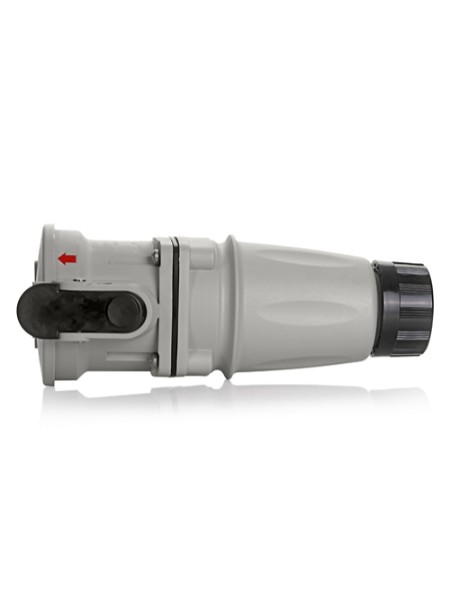

Leviton ARC30C162 Gray Pin and Sleeve Connector

Switch-Rated 30A Pin and Sleeve Connector by Leviton

The ARC30C162 from Leviton is a 30-amp, 208-volt ArcArrest switch-rated pin and sleeve connector designed to de-energize industrial equipment and provide a local means of disconnect. It is suitable for harsh, wet industrial settings. Key features include IP67/IP69K sealing and a 2-pole, 3-wire configuration.

Key Features and Benefits of This Pin and Sleeve Connector

Because it is switch-rated, the connector can be operated under load, which reduces exposure to live parts and arc flash. A lockout hole supports lockout and tagout procedures. The NEMA 4X and IP67/IP69K ratings keep a watertight seal whether the connector is mated or unmated.

Where to Use the ARC30C162 Connector

This connector suits industrial equipment that needs a local disconnect, such as machinery and process lines in washdown or wet areas. Leviton rates it for operation from -20°C to 60°C. It is a connector, not a plug, so it pairs with a matching mating device.

Installation and Compatibility Checks

Confirm that your supply is 208V, 2-pole plus ground, 30A, and that your cable fits the 0.500 to 0.875-inch cord grip and #12 to #8 AWG terminals. Verify the mating device matches this configuration. Installation should be done by a qualified electrician.

Additional Buying Context

Leviton lists UL 1682 and UL 2682, CSA C22.2 182.1-17, and RoHS compliant components, with a V-0 flammability rating. The warranty is 1 year, limited. The housing is gray and measures about 3 by 3 by 7.8 inches.
