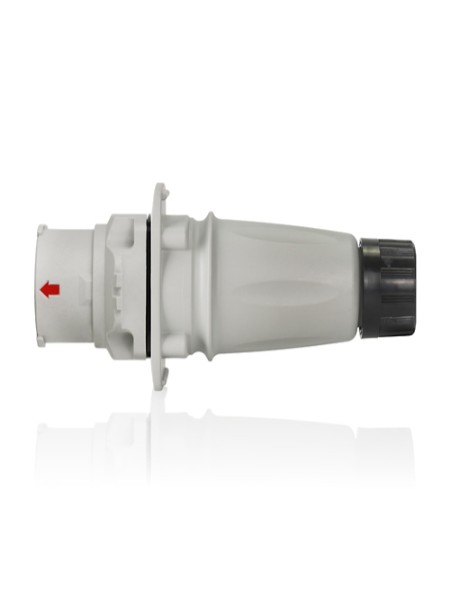

Leviton ARC30PD045 Gray Pin and Sleeve Plug With Drawplate

Switch-Rated 30A Pin and Sleeve Plug by Leviton

The ARC30PD045 from Leviton is a 30-amp, switch-rated pin and sleeve plug with drawplate designed for safely de-energizing industrial equipment. It is suitable for industrial settings needing a local disconnect. Key features include IP67/IP69 ingress protection and a gray finish.

Key Features and Benefits of This Pin and Sleeve Plug

The switch-rated design lets users de-energize equipment at the plug, which supports safer connection and disconnection. The page states it serves as a local disconnect means. IP67/IP69 protection helps the device resist dust and water, and operation from -20°C to 60°C suits demanding environments.

Where to Use the ARC30PD045 Pin and Sleeve Plug

This plug is well suited for industrial equipment connections where operators must isolate power locally, such as machinery. Specific installation locations are not listed on the product page, so confirm that your application and site rules allow this device before relying on it.

Installation and Compatibility Checks

Voltage, number of poles, and mounting details are not listed on the product page, so review the specification and installation sheets before ordering. Match the plug to a compatible pin and sleeve receptacle of the same system and rating. Installation should follow local electrical codes and be done by a qualified electrician.

Additional Buying Context

The plug is UL Listed and RoHS compliant, with a 1-year manufacturer warranty. Because it is one half of a connection, plan to buy a matching receptacle or connector, and check cable size against the plug's drawplate and strain relief.
