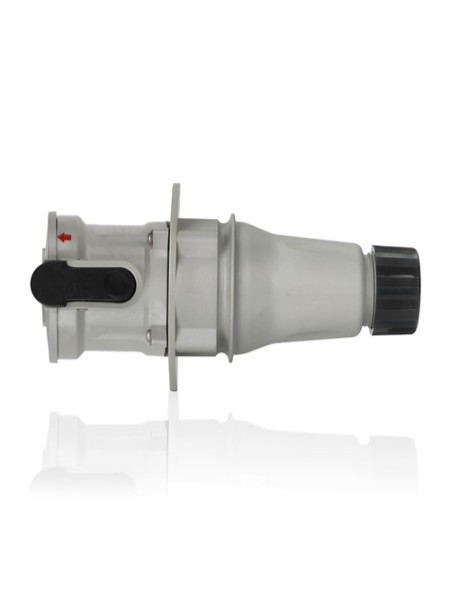

Leviton ARC60CD045 Gray Pin and Sleeve Connector With Drawplate

60A ArcArrest Pin and Sleeve Connector by Leviton

The ARC60CD045 from Leviton is a gray 60-amp pin and sleeve connector with a drawplate, designed as a switch-rated ArcArrest device that provides a local means of disconnect. It is suitable for industrial power connections. Key features include IP67/IP69 ingress protection and UL Listed construction.

Key Features and Benefits of This Pin and Sleeve Connector

The IP67/IP69 (ingress protection) rating indicates protection against dust, temporary immersion, and high-pressure, high-temperature water jets, which matters in wet or washdown areas. The switch-rated design allows a local disconnect, and the -20°C to 60°C operating range covers cold and hot work environments.

Where to Use the ARC60CD045 Pin and Sleeve Connector

This connector is well suited for industrial equipment connections where power needs a local disconnect at the point of connection, including wet or washdown areas supported by its IP67/IP69 rating. Confirm the application and mating device with Leviton.

Installation and Compatibility Checks

Voltage, number of poles, and mounting are not listed on the page, so match them to the mating device and your supply before ordering. The connector measures 3.5 by 8.72 by 4.22 inches, so check cable and enclosure clearances. Installation should be done by a qualified electrician.

Additional Buying Context

A 1-year manufacturer warranty applies, and the device is UL Listed and RoHS compliant. A specification sheet and installation sheet are linked on the product page. Because this is a connector, you will also need a compatible mating receptacle or inlet.
