Leviton D532D Docksider Power Pedestal

Docksider Marine Power Pedestal by Leviton

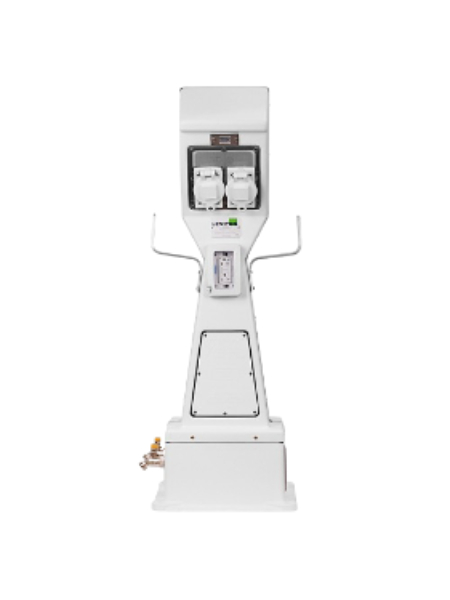

The D532D from Leviton is a dual-side, single-phase Docksider power pedestal with a loop bus bar and water hookup, designed for marinas and docks. It is suitable for surface mounting where boaters need shore power and water. Key features include a 240-amp maximum, a NEMA 3R enclosure, and a molded Noryl body.

Key Features and Benefits of This Marine Power Pedestal

One unit supplies two 50-amp, two 30-amp, and two 20-amp GFCI (ground-fault circuit interrupter) receptacles, so different boats can connect at once. Two 3/4-inch quarter-turn water valves add water service. A white LED light with photocell helps users see at night.

Where to Use the D532D Marine Power Pedestal

This pedestal is intended for marine use, such as marina slips, docks, and boat launches where shore power distribution is needed. Its dual-side layout serves boats on either side. It is a marine pedestal and is not designed for indoor residential or general building use.

Installation and Compatibility Checks

The pedestal surface-mounts with anchors included and is rated 125/250 VAC. Standard breakers are included for the receptacles, but no main breaker or meter is supplied, so plan for these separately. Installation should be performed by a qualified electrician following local code.

Additional Buying Context

Leviton lists a 5-year warranty on the housing and 1 year on the devices. The unit is made to order and is non-cancelable, non-refundable, and non-returnable, so confirm the configuration before ordering.
