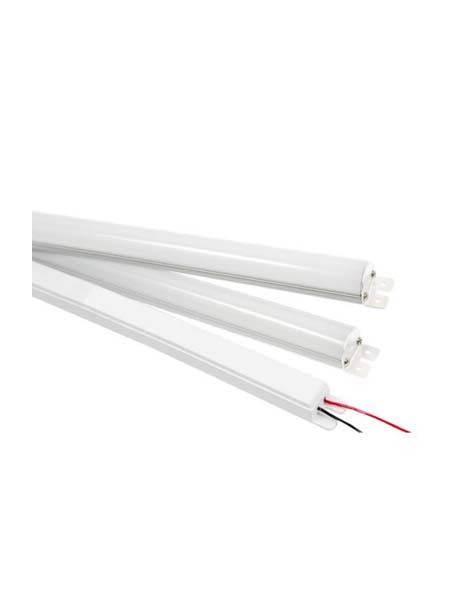

Light Efficient Design RPT-P-LEDBARKITJ-20W-4FT-4L-8XX 20W LED Linear Retrofit Kits

20W 4 ft LED Linear Retrofit Kit by Light Efficient Design

The RPT-P-LEDBARKITJ-20W-4FT-4L-8XX from Light Efficient Design is a 20-watt, 4-foot LED linear retrofit kit designed to upgrade existing linear fixtures. It is listed in color temperatures from 2700K to 6500K. Key features include 2,600 lumens, dimmable operation, and a 10-year manufacturer warranty.

Key Features and Benefits of This LED Linear Retrofit Kit

Producing 2,600 lumens from 20 watts makes the kit an efficient LED upgrade for older linear lighting. A CRI (Color Rendering Index) of 80+ gives acceptable color accuracy, and the 100,000-hour rated life reduces how often lamps need replacing. Dimmable operation allows brightness control.

Where to Use the RPT-P-LEDBARKITJ-20W-4FT-4L-8XX LED Linear Retrofit Kit

This kit suits spaces with 4-foot linear fixtures that need an LED upgrade, such as offices, shops, and utility areas. A location rating is not listed, so do not assume damp or wet suitability. The listed operating range is -30 to 40 degrees C.

Installation and Compatibility Checks

The kit operates on 120 to 277V and is listed as dimmable, but the dimming protocol is not stated, so confirm control compatibility. Mounting type and dimensions beyond the 4-foot length are not listed. Confirm your existing fixture can be retrofitted and choose your color temperature carefully.

Additional Buying Context

The kit is DLC (DesignLights Consortium), UL/CSA, FCC, and RoHS listed. DLC listing is often requested for utility rebate programs, though eligibility depends on your program. The manufacturer warranty is 10 years.
