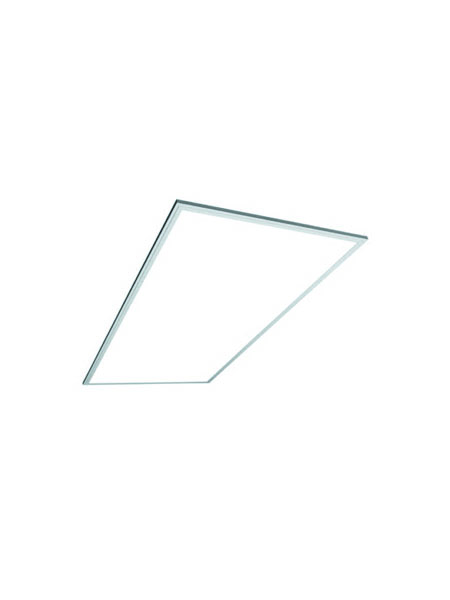

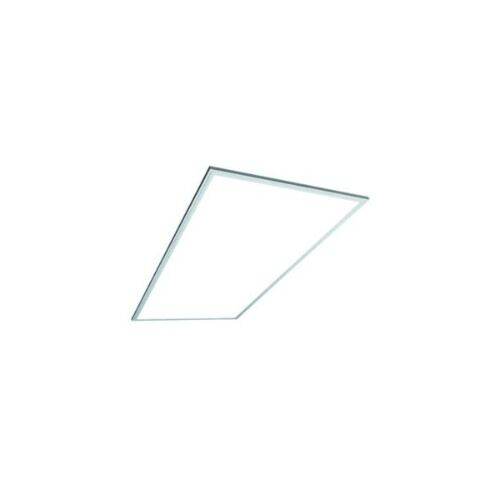

TCP DTF405UZD2330K 23W 2' x 4' Direct Back-lit LED Troffer

23W LED 2x4 Direct-Lit Troffer by TCP

The DTF405UZD2330K from TCP is a 23-watt LED direct-lit troffer sized for standard 2-by-4-foot ceiling grids. It is designed for commercial office, retail, and institutional applications. Key features include 2100 lumens of 3000K light and dimming compatibility for flexible commercial lighting control.

Key Features and Benefits of This LED Troffer

A 23-watt draw producing 2100 lumens offers efficient replacement light for aging fluorescent troffers. A CRI (color rendering index) above 80 and 120-degree beam angle spread even, accurate light across open ceiling areas. DLC listing supports eligibility for utility rebate programs in many Canadian jurisdictions.

Where to Use the DTF405UZD2330K LED Troffer

This troffer suits offices, classrooms, retail spaces, and other commercial interiors with standard 2x4 drop ceiling grids. Its damp-location and IP20 ratings limit use to dry to moderately damp indoor spaces rather than washdown or fully wet areas.

Installation and Compatibility Checks

This fixture fits standard 2x4 ceiling grid openings and operates on 120-277V, so confirm the building's line voltage before ordering. Check that grid ceiling tiles match troffer dimensions, and pair with an LED-compatible dimmer if dimming control is required across the space.

Additional Buying Context

With a 5-year manufacturer warranty and 50,000-hour rated lifespan, the DTF405UZD2330K offers a long-term retrofit for outdated fluorescent troffers in commercial renovations. UL/CSA and RoHS compliance give facility managers documentation for code compliance during upgrade projects.
