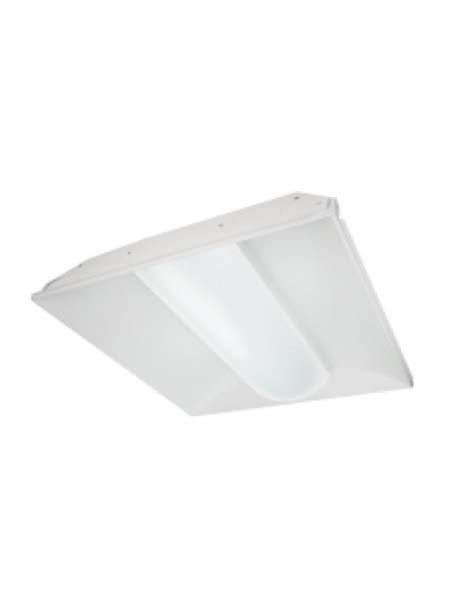

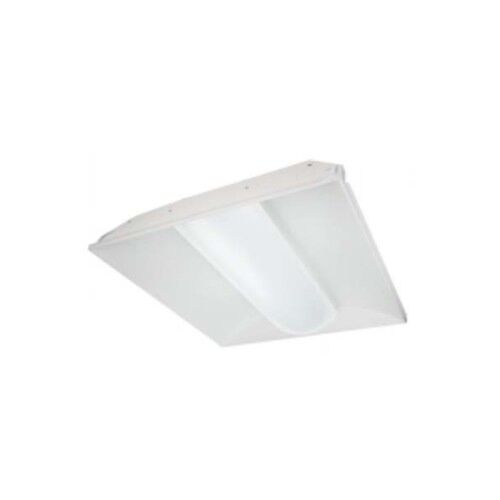

TCP TRV2UZD2950K 29W 2' x 2' Volumetric LED Troffer

2x2 Volumetric LED Troffer by TCP

The TRV2UZD2950K from TCP is a 29-watt, 2 by 2 foot volumetric LED troffer designed for commercial ceiling lighting. It is suitable for indoor damp locations. Key features include 3,200 lumens at 5000K, dimmable operation, and an operating range of 120 to 277 volts.

Key Features and Benefits of This LED Troffer

The integrated LED source removes lamp replacement, and the 50,000-hour rated life keeps maintenance low. DLC (DesignLights Consortium) listing can help with utility rebate programs, so confirm eligibility with your provider. The 5000K light is a cool, crisp white with a CRI (Color Rendering Index) above 80.

Where to Use the TRV2UZD2950K LED Troffer

This troffer suits offices, classrooms, corridors, and retail or back-of-house spaces that use 2 by 2 ceiling grids. It is rated for damp locations at IP20, so it is not intended for wet or outdoor areas. If 5000K feels too cool for the space, choose a warmer model.

Installation and Compatibility Checks

The fixture measures 23.81 by 23.81 by 2.62 inches, so verify that your ceiling grid and plenum clearance can accommodate it. It is dimmable, but the dimming method is not listed, so confirm control compatibility. It is IC rated. Mounting hardware is not listed.

Additional Buying Context

TCP lists a 7-year manufacturer warranty. The troffer is listed to UL/CSA standards and is RoHS compliant. Consider it for retrofit projects replacing older fluorescent troffers, after checking your ceiling and supply voltage.
