Techspan 562009 Non-Insulated Ring Terminals

Non-Insulated Ring Terminals by Techspan

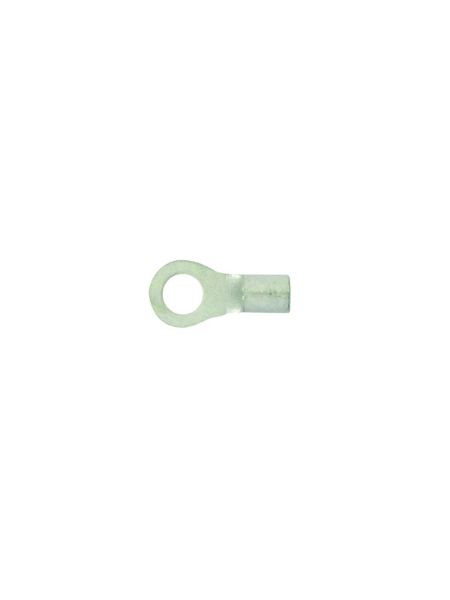

The 562009 from Techspan is a non-insulated ring terminal designed for connecting wire to a stud. It is suitable for 12 to 10 AWG conductors on a #10 stud. Key features include a 600-volt rating and a listed operating temperature of 75°C.

Key Features and Benefits of This Ring Terminal

The ring shape wraps fully around the stud, so the connection stays captive once the nut is tightened, unlike an open spade style. Matching the 12 to 10 AWG range and #10 stud size to your job helps deliver a snug fit and a secure crimped connection.

Where to Use the 562009 Ring Terminal

These terminals suit wire-to-stud connections on #10 studs where 12 to 10 AWG wire is used. Because they are non-insulated, they have no built-in sleeve, so cover the finished connection if accidental contact is possible.

Installation and Compatibility Checks

Before buying, check your wire gauge (12 to 10 AWG) and stud size (#10). A crimping tool suited to this terminal size is needed. The page does not state barrel material, finish, or crimp specifications, so confirm these in the spec sheet if your application requires them.

Additional Buying Context

The page lists no certifications, warranty terms, or pack quantity, so confirm these with Lumenco before ordering for work with strict specifications. If insulation is needed, add a separate cover such as heat shrink after crimping.
