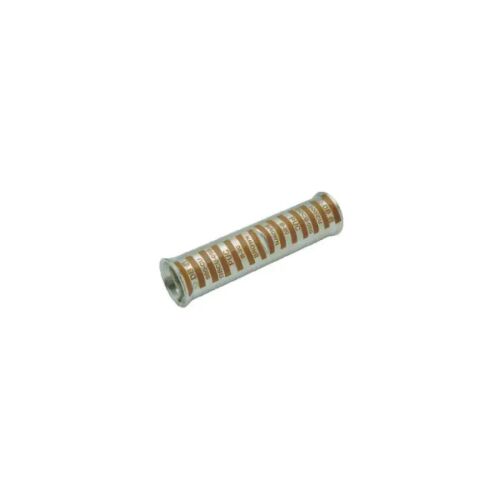

Techspan BBCU050FL Copper Compression Splice

Copper Compression Splice - Long Flared Barrel 500 kcmil. Manufactured from high-conductivity seamless copper tubing. Tin-plated to inhibit corrosion. Flared barrel entry provides easy cable insertion for fine-stranded cable and minimizes strain during flexing and movement. Positive cable stop to ensure proper insertion of conductors to full depth. Long barrel provides high pull-out force and added secureness for improved mechanical and electrical properties. Color-coded barrels are marked with die index numbers. Connectors are suitable for voltages up to 35 KV if taped according to accepted practices; 5 KV is the maximum voltage level in all bare splice applications. Connectors are UL listed and CSA certified with Penn-Union, Burndy, TandB, Huskie, Greenlee, and Versa-Crimp style tooling.
