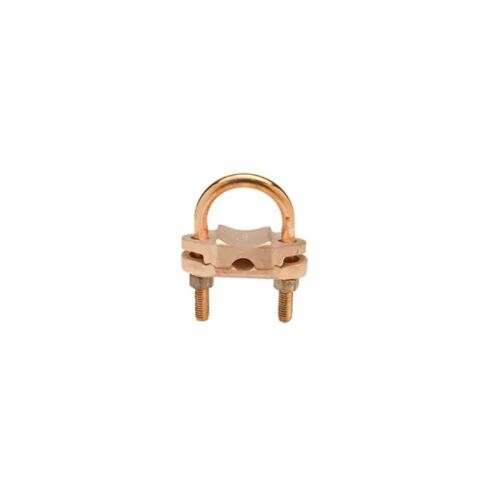

Bronze Ground Clamp Connectors 4 AWG - 2/0 AWG Accomodates IPS 1/2"or 3/4" Rod 7/8"or 1". Constructed from a high copper-content alloy for reliable conductivity and long-term durability. Designed to connect copper grounding conductors to water pipes, rods, or structural tubing. Includes a silicon bronze U-bolt, nuts, and lock washers for enhanced corrosion resistance. Clamp design allows the conductor to run parallel to the pipe or be installed at a right angle for grounding multiple parallel pipes. Suitable for direct burial in soil or concrete applications. Engineered for easy single-wrench installation. UL 467 listed.
| Certifications | cULus Listed |
|---|---|
| Dimensions | 1.63"L x 2.63"W x 2.38"H |
| Structure Finish | Bronze |
