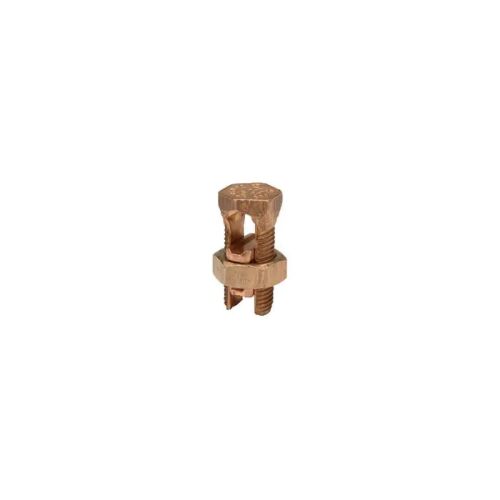

Techspan SEL2 Copper Split Bolt Connector for Two Or Three Conductors

Copper Split Bolt Connector for Two or Three Conductors - 6 AWG - 2 AWG (Equal Main and Tap). Manufactured from high-strength copper alloy – highly resistant to corrosion and season cracking. For use with a wide range of copper solid, compact, compressed, concentric, copperweld conductors, and rebar. Approved for electrical power, grounding/bonding, and direct burial applications. Type SEL is for use with two or three conductors in electrical power, grounding/bonding, and direct burial applications in earth and concrete. DB permanently marked on head for conductor sizes up to 500 kcmil. True hex design allows easy installation with standard tooling. Under torque, this design provides high contact pressure between conductors or conductor to rebar. Pressure bar design features give assurance of high "pull-out" and secure connection on all combinations of conductors. Wide wire range. Rated for copper conductors, 600 V, 90°. Use with torque wrench, standard socket, box, or open-end wrenches. Reusable with proper installation practice.
