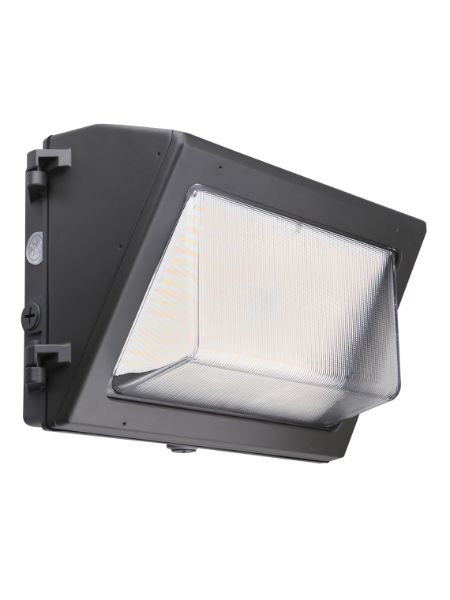

Votatec AST-SWP05M-80WBSGDC1-BRWe Wall Pack Wattage and CCT Selectable

Selectable Wattage and CCT Wall Pack by Votatec

The AST-SWP05M-80WBSGDC1-BRWe from Votatec is a wall pack designed for exterior and perimeter lighting. It is suitable for building walls where an IP65 rated fixture is needed. Key features include selectable 60, 70, or 80 watt output and selectable 3000K, 4000K, or 5000K color temperature.

Key Features and Benefits of This Wall Pack

Selectable wattage and CCT (correlated color temperature) let one fixture cover several jobs, which simplifies ordering and stocking. Output ranges from 9,300 to 10,400 lumens with a 110-degree beam and a CRI (Color Rendering Index) above 80. The 120 to 347 volt range suits many commercial supplies.

Where to Use the AST-SWP05M-80WBSGDC1-BRWe Wall Pack

This wall pack suits building exteriors, loading areas, entrances, and parking perimeters where steady area lighting is needed. Its IP65 rating indicates protection against dust and water jets. Choose the lower wattage and warmer CCT for softer building lighting, or the higher settings where more brightness is needed.

Installation and Compatibility Checks

The fixture measures 14.25 by 9.37 by 9.84 inches, so confirm the mounting surface and clearance. Verify that your supply falls within 120 to 347 volts. Dimming, mounting hardware, and sensor options are not listed, so check the specification sheet if you need photocell or control compatibility.

Additional Buying Context

Votatec lists a 5-year manufacturer warranty and a 50,000-hour rated life. The fixture is cULus Listed and RoHS compliant. Because wattage and CCT are selectable, confirm the settings you need before installation, as the setting affects the lumen output.
